Panel dividing saw SAWTEQ B-300 P

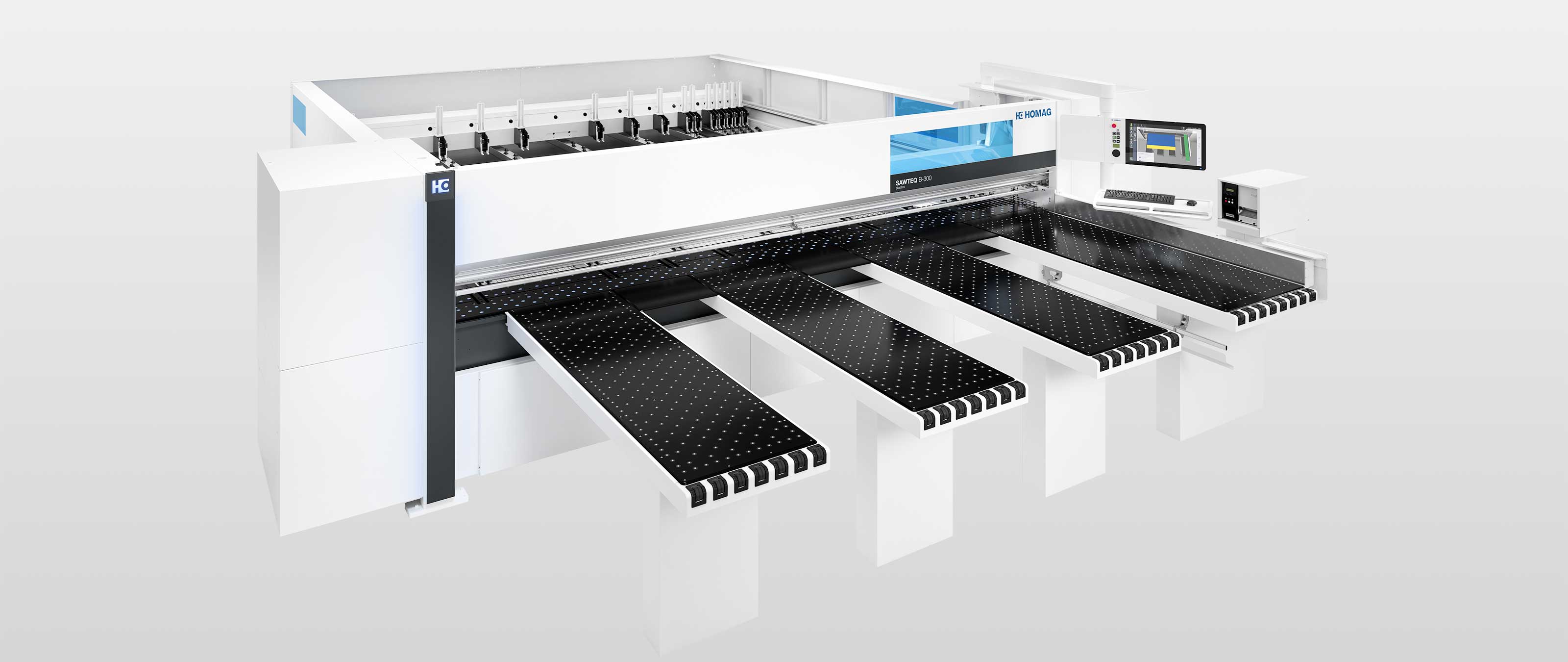

Panel dividing saws for plastics processing SAWTEQ S-300 plastics

Panel dividing saws for plastics processing SAWTEQ S-300 plastics

The classic among the horizontal plastics saws provides great cutting precision and produces even small quantities profitably.

The SAWTEQ S-300 plastics is one of the most popular models of the plastics series. Its 95 mm saw blade projection and high processing speed allow it to master everyday operation and high demands with ease.

Benefits

  • Flexible, fast single saw
  • Short payback period thanks to attractive capital investment and low operating costs
  • Versatile and flexible due to a wide range of optional features

Images

  • Destacking concept: guides the operator from depositing the first part to forming the perfect stacked pallet (option).
  • Custom-designed labels for parts identification: for automatic program selection on downstream machines (option).
  • Anodized aluminum machine bed plates for material-friendly transport. Ideal for materials with highly sensitive surfaces (option).
  • Clamps for narrow parts make it possible to clamp narrow strips (option).
  • Kerf workpieces directly on the panel saw – that saves time and costs (option).
  • Manual angle cuts: fast, efficient and gentle on material thanks to automatic calculation and adjustment of the angle (option).
  • Saw carriage with integrated minimal spray device for the main saw blade (option).
  • Multi-directional rollers: for less frictional resistance, significantly easier handling and improved ergonomics (option).
  • Automatic labeling during the ongoing cutting process – for error-free labeling and detailed parts identification (option).
  • Special rollers for processing scratch-sensitive surfaces (option).

Features

  • Available in two cutting lengths – 3,200 mm or 4,300 mm

  • Reverse cutting for precise cutting of thin materials such as PETG

  • CADmatic machine control with the “material-dependent parameters” module for short setup times

  • Logo ecoPlus

    Machine table fully equipped with air jets and dustEx technology

Technical Data

Saw blade projection [mm]95
Cutting length [mm]3,200 / 3,800 / 4,300
Program fence speed [m/min]90
Saw carriage speed [m/min]0.1-150
Main saw motor (frequency controlled) [kW]50 Hz: 24
60 Hz: 28
Monitor24" full-HD multi-touch display
Operating softwareCADmatic 5

(Previous product name: Panel dividing saw SAWTEQ B-300 | HPP 300 Plastics)
